Air Antenna is a lighter, smaller, and more durable 5.8G antenna for Analog or Digital FPV. RHCP version is suitable for Analog drones, and the LHCP version can be used on all digital VTX drones. With this air antenna, pilots can build a lighter quad, and get a better flight experience. Meanwhile, it is very durable, pilots can avoid buying the antennas again and again. Especially increases the length of the RHCP version
Notice: Cause the DJI Goggle Antennas are LHCP, both sides need to match! We highly recommend using the Air LHCP (Left Hand Polarization) use for DJI Digital FPV.
Specification
- Item: Air 5.8GHz Digital VTX Antenna
- Connector: IPEX
- Polarizability: LHCP
- Gain: 2.2Dbi
- Color: Blue
- Weight: 1.1g (1 pc)

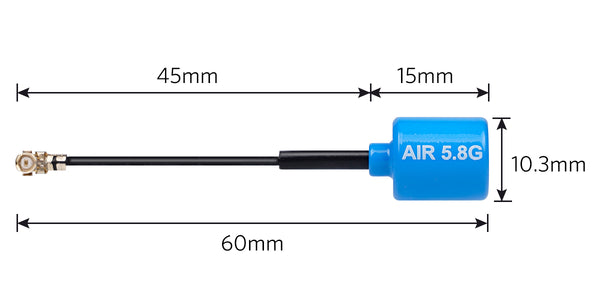

- Dimensions: 10.3mm*50mm
- Center Frequency: 5.8GHz
- Bandwidth: 500 MHz (5.5 – 6.0GHz)
- Cable：RG1.37
Specification of Air 5.8GHz Analog Antenna
- Item: Air 5.8GHz Analog Antenna
- Connector: IPEX
- Polarizability: RHCP
- Gain: 2.2Dbi
- Color: Blue
- Weight: 1.1g (1 pc)
- Dimensions: 10.3mm*60mm
- Center Frequency: 5.8GHz
- Bandwidth: 500 MHz (5.5 – 6.0GHz)
- Cable：RG1.37
Package
- 1 * Air 5.8GHz Antenna (LHCP or RHCP)
